特價

樹莓派Python可程式化自動對焦攝影鏡頭替換模組(Arducam, IMX219, 8MP)

NT$ 758

  • An autofocus replacement for your Raspberry Pi camera V2 to see in a much clearer way. Also support keyboard manual focus control without adjustment tool.
  • SEE NATURALLY: 8MP IMX219 sensor drop-in replacement module for your Raspberry Pi Camera Module V2 and NVIDIA Jetson Nano, works natively compatible with the Raspberry Pi
  • SEE CLOSER: Software-controllable moveable Lens. See in millimeter level, much closer than the fixed focus (1 m to infinity) official lens
  • SEE PRECISELY: Precise manual focus control with UP and DOWN keys on the keyboard to handcraft your pixel accuracy step by step. See Arducam Github for more details
  • SEE SMARTER: Autofocus python scripts to enable the auto focus features on the Raspberry Pi, powered by OpenCV
  • Note: Please detach and re-attach the connectors gently and carefully, otherwise you might cause damage to the connection. The Raspberry Pi Camera Module V2 is NOT included.
  • Note: By default, the examples reset the focus as you quit the program or power off. To fix the focus, please alter the example code on your own.

尚有庫存

描述

Print Friendly, PDF & Email

樹莓派Python可程式化自動對焦攝影鏡頭替換模組(Arducam, IMX219, 8MP)

The highlight of this camera is that the lens focus is programmable by software, and Arducam team provide an opensource code to implement software auto-focus function for Jetson Nano.

To learn more about autofocus with Raspberry Pi camera modules, we recommend you read Raspberry Pi Camera Autofocus: The Complete Guide.

Features:

  • Sony 8MP IMX219 Sensor
  • Optical Format: 1/4 inch
  • Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
  • Data Format: RAW8/RAW10
  • EFL: 2.8mm
  • F.NO: 2.2
  • Focus Type: Programmable/Auto Focus
  • View Angle: 77.6 (Diagonal)
  • Interface: MIPI CSI-2 2-lane
  • IR Sensitivity: Visible light, Integral IR Filter
  • Horizontal FoV: 65°
  • Vertical FoV: 51°
  • Focus Distance: 80mm to infinity

Application:

  • Unmanned Aerial Vehicles (UAVs)
  • Building Drones
  • Autonomous Robotic Systems
  • Mobile Medical Imaging
  • Intelligent Video Analytics (IVA)

Documentation:

Package Includes:

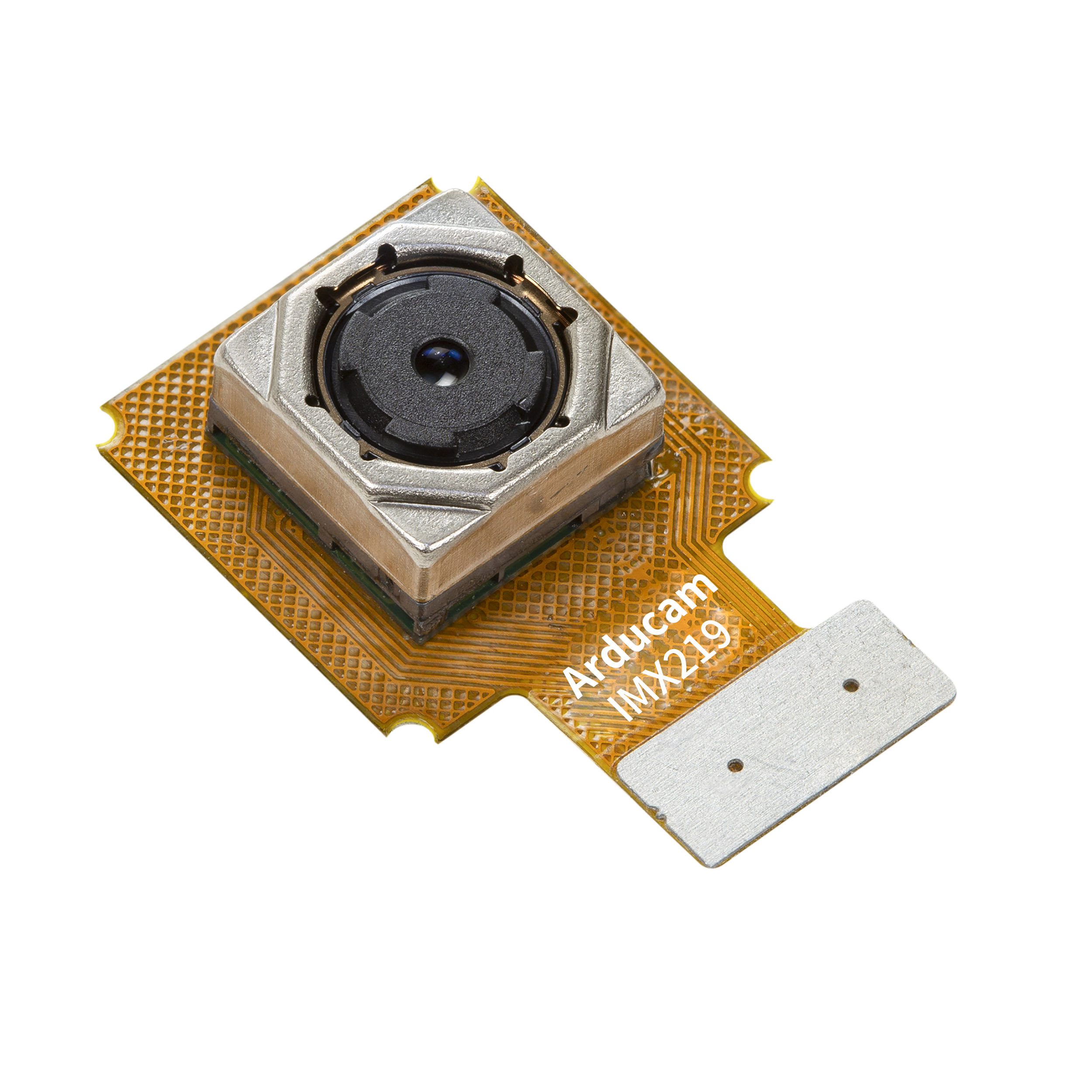

  • 1pcs Arducam IMX219 Auto Focus Camera Module

Note: Raspberry Pi V2 Camera Board is needed to work with this camera module.
