• • Output
    • Output voltage: +5.1V DC
    • Minimum load current: 0.0A
    • Nominal load current: 3.0A
    • Maximum power: 15.0W
    • Load regulation: ±5%
    • Line regulation: ±2%
    • Ripple & noise: 120mVp-p
    • Rise time: 100ms maximum to regulation limits for DC outputs
    • Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
    • Protection:
      • Short circuit protection
      • Overcurrent protection
      • Over temperture protection
    • Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%)

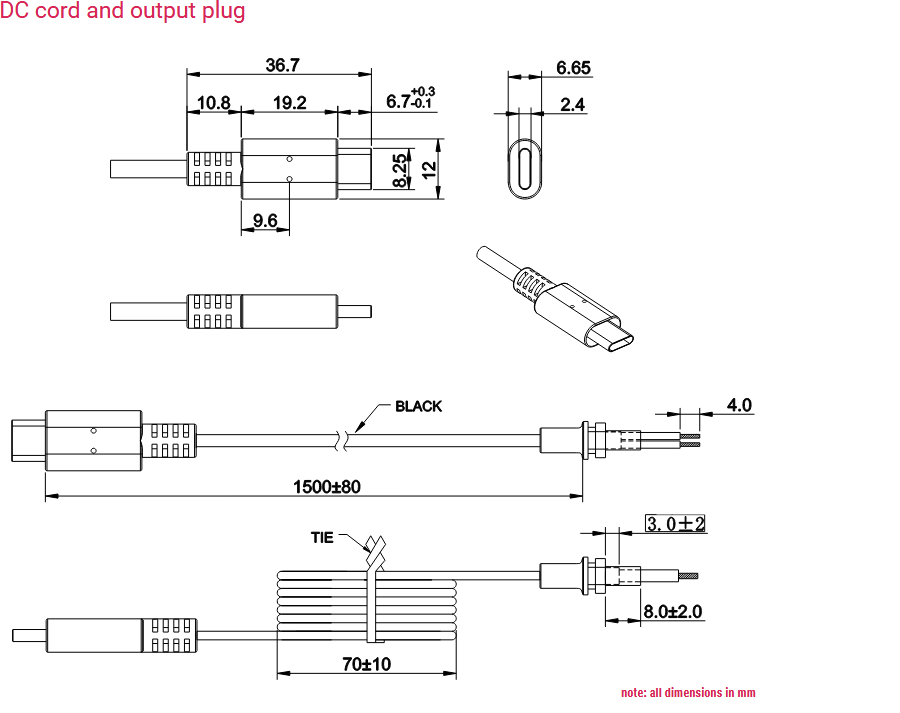

    • Output cable: 1.5m 18AWG
    • Output connector: USB Type-C
  • Input
    • Voltage range:
      • 100–240Vac (rated)
      • 96–264Vac (operating)
    • Frequency: 50/60Hz ±3Hz
    • Current: 0.5A maximum
    • Power consumption (no load): 0.075W maximum
    • Inrush current: No damage shall occur and the input fuse shall not blow
  • Operating ambient temperature 0–40°C

WARNINGS

• • This product should be operated in a well-ventilated environment.
  • The connection of incompatible devices to this power supply may affect compliance, result in damage to the unit and invalidate the warranty.

SAFETY INSTRUCTIONS

• • To avoid malfunction or damage to this product please observe the following:
  • Do not expose to water or moisture, or place on a conductive surface whilst in operation.
  • Do not expose to heat from any source; this is designed for reliable operation at normal ambient room temperatures.
  • Do not attempt to open or remove the power supply case
