40.樹莓派 Raspberry Pi Power Bank 多功能擴充板

NT$ 1,118 (含稅)



英國Pridopia公司設計製造

工廠直營,提供技術支援,保固3個月

適用樹莓派A/B

售價含稅,隨貨附發票

歡迎來信選購或洽詢

貨號: rs-pi-power-bank 分類: , 標籤: , , ,

描述

Print Friendly, PDF & Email

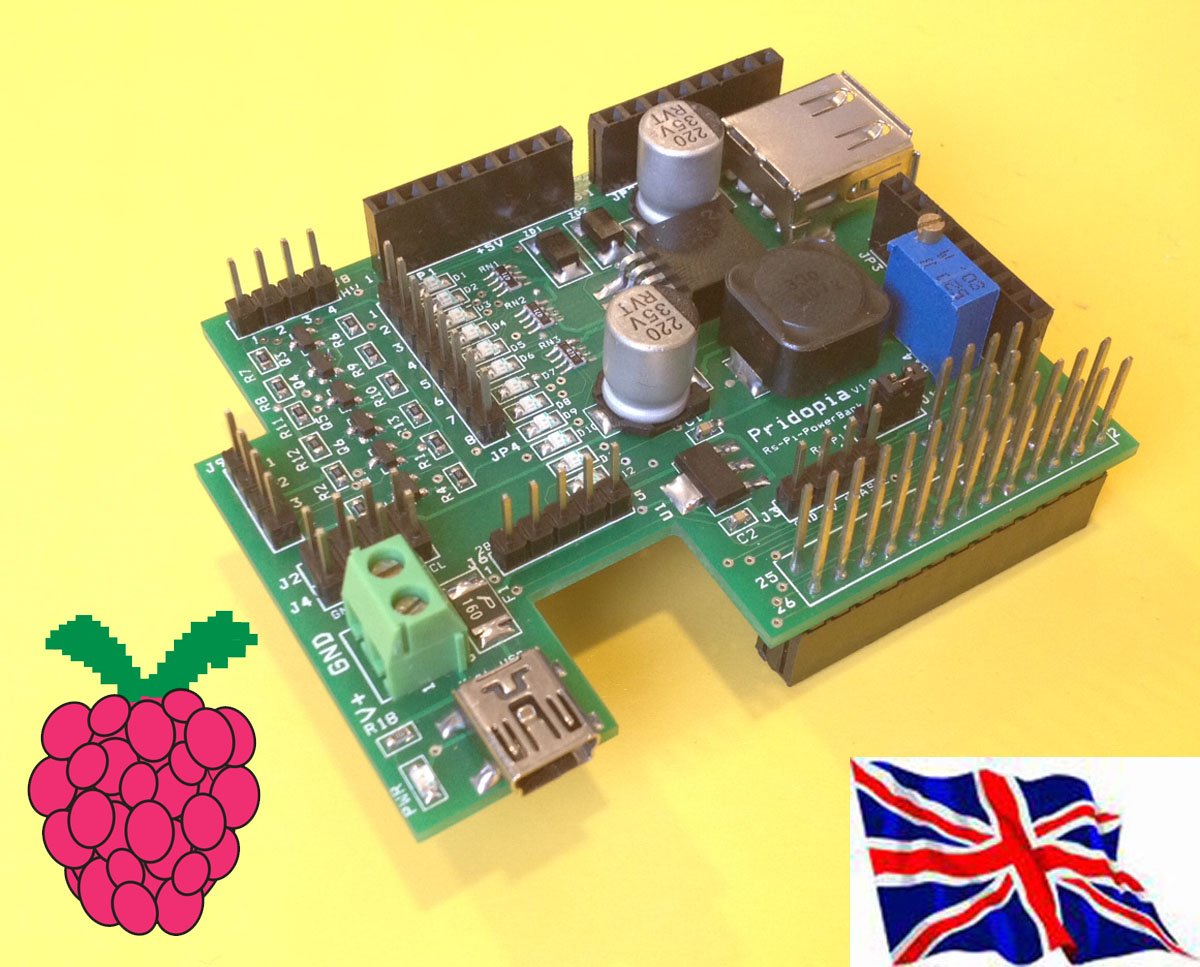

樹莓派 Raspberry Pi – DC Power Bank Multi Function Board

rs-pi-power-bank-tv

一、產品特色

1. LM2596S:STEP DOWN POWER MODULE

2. Input voltage range: DC 7.2V to 12V (input voltage must be higher than the output voltage above 1.5V. Could not boost)

3. Output voltage range: DC voltage from 5V to 10V continuously adjustable, high efficiency (92%) of the maximum output current of 2A.

4. can use 7.2V battery or 9V/10V/12V DC power adapter input –> DC 5V output with 3.3V power regulator provide 3.3V power build-in 4 channel Logic Level converter, for 5V logic device input signal.

5. 2 –  5V i2c input port with Logic level converter

6. 1 – 3.3V i2c input port .

7. 8 GPIO  pin with 8 LED (GPIO 17,18,27,22,23,24,25,4)

8. 4 V2 P5 pin  with 4 LED (GPIO 28,29,30,31)

rs-pi-power-bank-demo02

二、Scratch驅動應用範例 Detail

scratch-power-bank-demo01

psu-led-demo01

  Command GPWMLED”A” or “B” or “C” or “D”   A GPIO 17,18,27,22,23,24,25,4 B GPIO 28,29,30,31 C GPIO A + B Z STOP LED flashing

   S”speed 1 to 10″   1 fast   10 slow”

三、機械手臂控制示範

1. Change Maplin Robot Arm from PC base, USB port to Raspberry Pi Base,

GPIO Motor Control,

2. remove Battery use 12V DC power adapter for Raspberry Pi and Robot Arm.

rs-pi-L293d-3-robot-tv

rs-pi-power-bank-tv-1

maplin-robot

robot-arm-wire-01

robot-arm

3.Use a.Rs-pi–L293D-3 6 Motor Board  –

Control Robot Arm 5 Motor (M1,M2,M3,M4,M5)

b.Rs-Pi-Power Bank Multi-function Board

Use DC12V adapter, provide Raspberry Pi 5V and

all the power for 5V DC Motor

4. xWindow control mode

Maplin-Arm.py       use keyboard and Mouse control

robot-arm-software-01

5.Scratch GPIO control mode

robot-arm-scratch-02

a. setting GPIO 17,18,27,22,23,24,25,4 as output

b. setting GPIO 28,29,31 as output



a KEY GPIO 28,29  M1   CLOCKWISE

s KEY GPIO 28,29  M1   ANTICLOCKWISE



w KEY GPIO 23,24  M2   CLOCKWISE

z KEY GPIO 23,24  M2   ANTICLOCKWISE



1 KEY GPIO 27,22  M4   CLOCKWISE

2 KEY GPIO 27,22  M4   ANTICLOCKWISE



3 KEY GPIO 25,4   M3   CLOCKWISE

4 KEY GPIO 25,4   M3   ANTICLOCKWISE



5 KEY GPIO 17,18  M5   CLOCKWISE

6 KEY GPIO 17,18  M5   ANTICLOCKWISE

6.Scratch PWM command mode

 A – GPIO 17,18  Motor A     B – GPIO 27,22   Motor B

 C – GPIO 23,24  Motor C     D – GPIO 25,4  Motor D

 E –  GPIO 28,29   Motor E

 command “Motor Name”+ “DM”+”speed”

speed (10 ~100)   clockwise

speed (-10 ~ -100) anticlockwise

robot-arm-scratch-01



a KEY GPIO 28,29  M1   CLOCKWISE

s KEY GPIO 28,29  M1   ANTICLOCKWISE



w KEY GPIO 23,24  M2   CLOCKWISE

z KEY GPIO 23,24  M2   ANTICLOCKWISE



1 KEY GPIO 27,22  M4   CLOCKWISE

2 KEY GPIO 27,22  M4   ANTICLOCKWISE



3 KEY GPIO 25,4   M3   CLOCKWISE

4 KEY GPIO 25,4   M3   ANTICLOCKWISE



5 KEY GPIO 17,18  M5   CLOCKWISE

6 KEY GPIO 17,18  M5   ANTICLOCKWISE

四、產品內容

1x Rs-Pi DC Power Supply  multi-function board

1x Manual
