2020 全新樹莓派運算模組 CM4 (非無線)

NT$ 3,580NT$ 3,980 (含稅)



售價含稅,隨貨附發票

保固1年

清除

描述

Print Friendly, PDF & Email

2020全新樹莓派運算模組 CM4 (非無線)

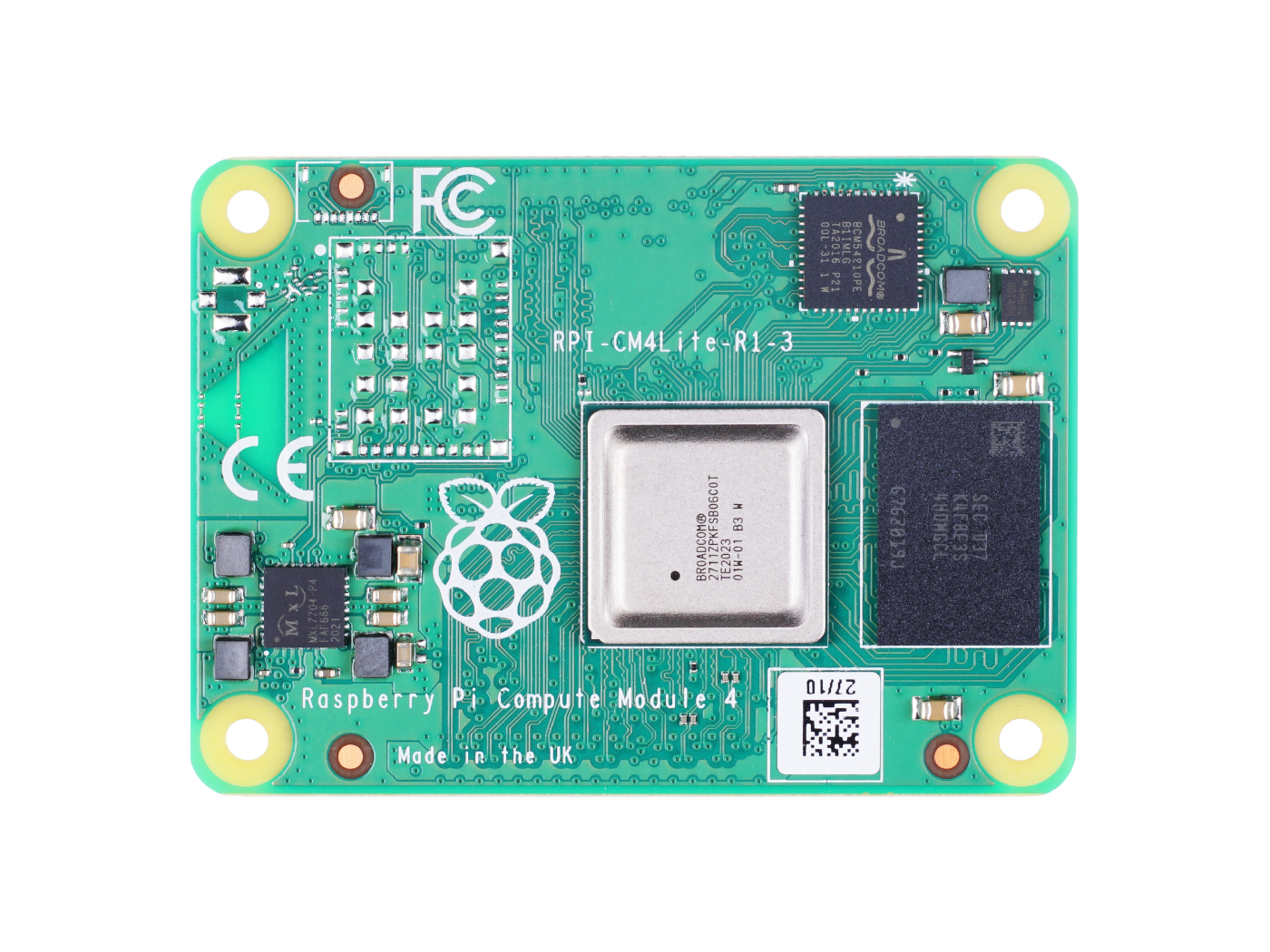

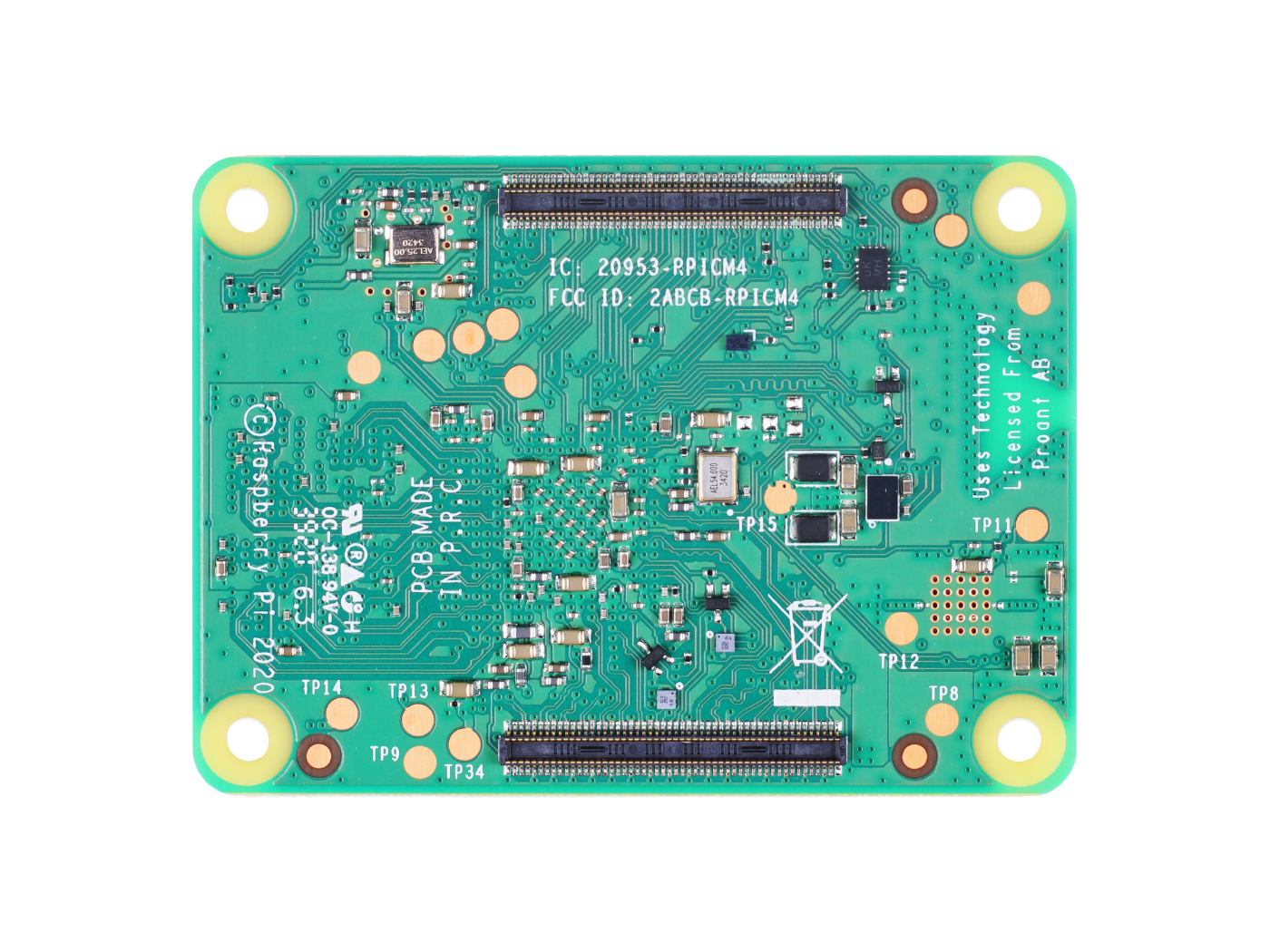

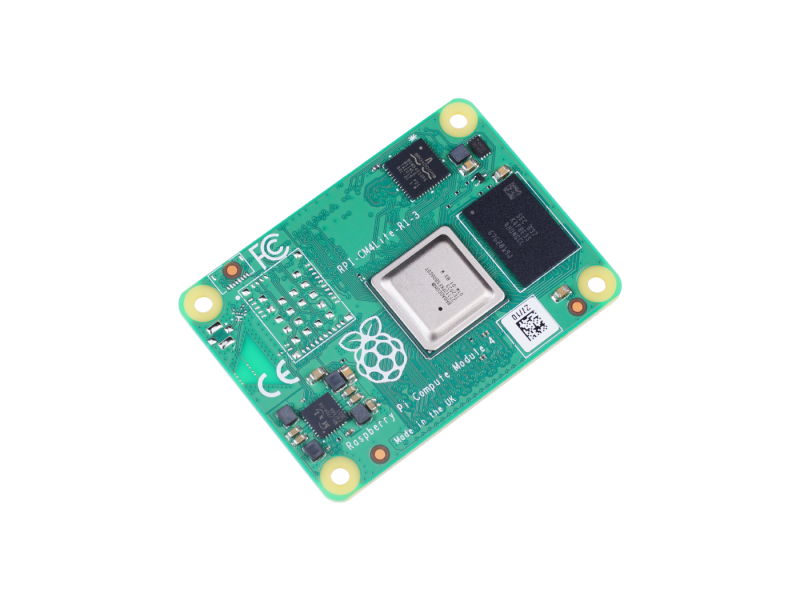

The Raspberry Pi Compute Module 4 (CM4) leverages the computing power of the popular Raspberry Pi 4 Model B, with dramatic performance changes compared to its predecessor: faster CPU cores, better multimedia, more interface capabilities. And for the first time, this release offers multiple choices of RAM density and wireless connectivity options.

In terms of external dimensions, this version adopts a completely new mechanical standard. The overall footprint of the module on its carrier board is reduced, resulting in a smaller and more compact form factor suitable for integration into products.

For storage, the Raspberry Pi Compute Module 4 (CM4) has an optional 8GB, 16GB, or 32GB onboard eMMC, which is different from the Raspberry Pi 4’s Micro SD card slot.

This version of the Raspberry Pi Compute Module 4 includes a high-performance 64-bit quad-core processor, 8GB LPDDR4 RAM, dual monitor support up to 4K resolution, hardware video decoding up to 4Kp60, Gigabit Ethernet, USB 2.0, dual camera interfaces, PCIe Gen 2 x1 interface, dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0.

商品特點:

    • High-performance 64-bit Quad-core Cortex A72  processor
    • More memory options (1GB/2GB/4GB/8GB), suitable for large data compilation
    • Dual display(HDMI) support at resolutions up to 4K
    • Faster eMMC flash with up to 100 MB/s transfer rate, 4x faster than CM3+
    • Added wireless module option with on-board PCB antenna and external antenna for industrial applications
    • Designed with B to B connectors for enhanced stability
    • Add on-board Gigabit Ethernet design, support IEEE1588, suitable for network application development
    • Add PCIe interface expansion, can flexibly add related modules

商品規格:

Specification Details
Processor Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory 8GB LPDDR4
Connectivity Onboard Gigabit Ethernet PHY supporting IEEE1588
1 × USB 2.0 interface
PCIe Gen 2 x1 interface
28 GPIO signals
SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
Video Dual HDMI interface (up to 4Kp60 supported)
2-lane MIPI DSI display interface
2-lane MIPI CSI camera interface
4-lane MIPI DSI display interface
4-lane MIPI CSI camera interface
Multimedia H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
Input power 5V DC
Operating temperature 0 to +80°C

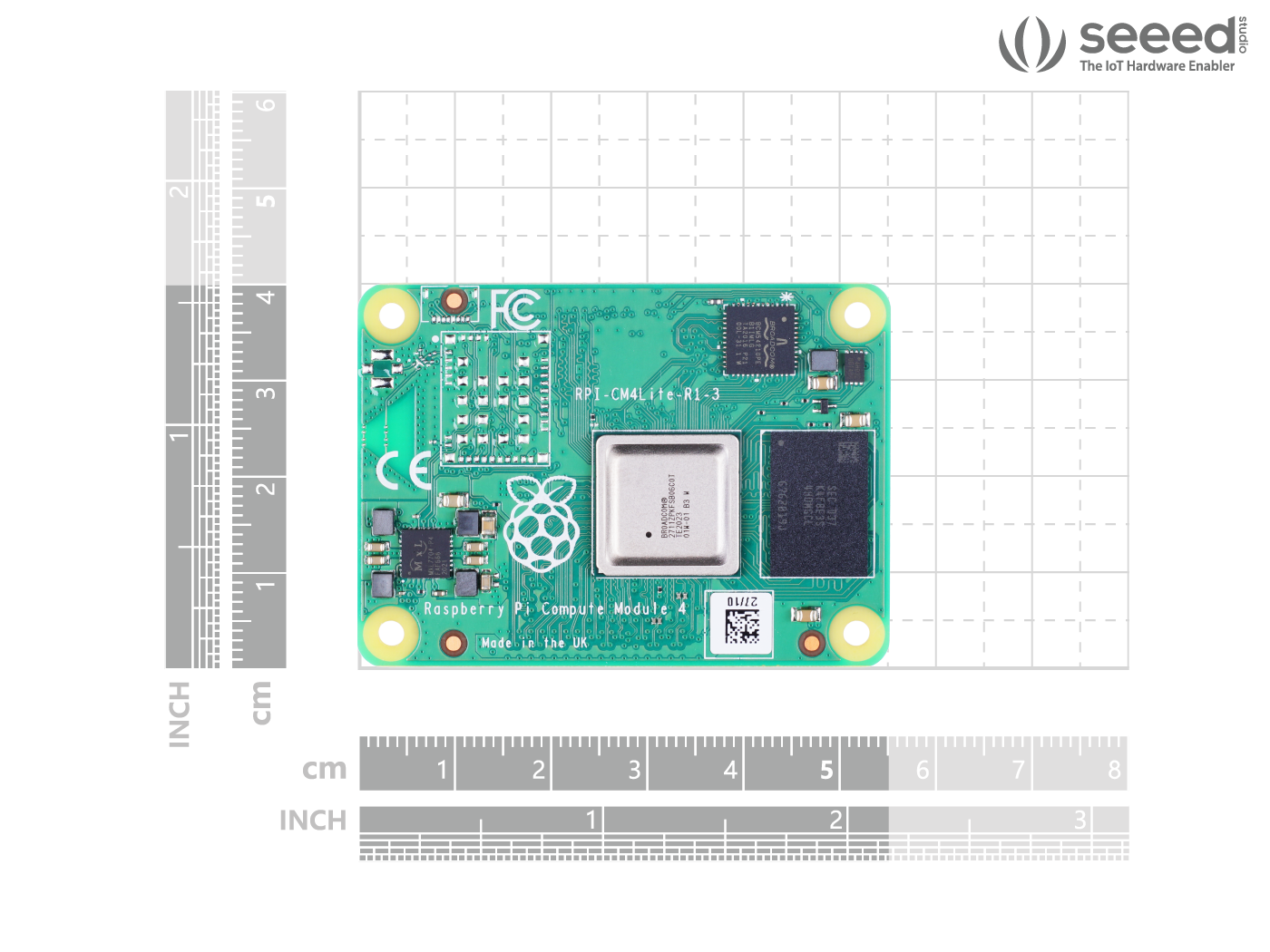

Dimensions 55 mm × 40 mm
Production lifetime Raspberry Pi Compute Module 4 will remain in production until at least January 2028
Compliance For a full list of local and regional product approvals, please visit:
www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md

相關文件:

Raspberry Pi Compute Module 4 product brief
Raspberry Pi Compute Module 4 datasheet
Compute Module 4 Lite (without eMMC) STEP file

商品評價

目前沒有評價。

搶先評價 “2020 全新樹莓派運算模組 CM4 (非無線)”
Print Friendly, PDF & Email
介面數量及介面參數
產品 PoE GbE
網路埠
40PIN
GPIO
PCIe USB DSI HDMI CSI RTC 風扇
介面
電源輸入 特性
NANO A 2.0×1 5V CM4
大小
NANO B 2.0×1 5V CM4
大小
Duino M.2 M 2.0×1 5V 相容 Arduino 介面
基礎板精簡 M.2 M 2.0×4 ×2 ×2 5V 5V 迷你
基礎板完整 M.2 M 2.0×4 ×2 ×2 5V 5V 迷你
觸摸擴充板 M.2 M 2.0×4 5V IPS 螢幕
雙眼視覺 M.2 M 2.0×4 ×2 5V 雙800萬畫素
四路 RS485 2.0×2 ×2 5V 7-36V 雙網路埠
雙GbE網路埠 ×2 3.0×3 ×2 ×2 5/12V 7-36V
物聯網雙GbE ×2 3.0×2 ×2 ×2 5/12V 5V 5G/4G 介面
物聯網工控 Gen2×1 2.0×2 ×2 ×2 ×2 5/12V 7-36V 5G/4G 介面; RS232; RS485; ADC
PoE B Gen2×1 2.0×4 ×2 ×2 ×2 5/12V 5V RS232; RS485
PoE UPS 2.0×4 ×2 ×2 5/12V 7-36V UPS
PoE 3.0×4 ×2 ×2 ×2 5/12V 7-36V
樹莓派官方 Gen2×1 2.0×4 ×2 ×2 ×2 12V 12V
無線擴充 M.2 B /
Mini-PCIe
2.0×3 5/12V 5V 或
7-36V
5G/4G 介面; RS485; CAN; 導軌安裝
5吋一體機 M.2 M 2.0×4 ×2 5/12V 5V
7吋一體機 M.2 M 2.0×4 佔用 佔用 5/12V
佔用
7-36V 攝影鏡頭;觸控; 喇叭
備註 ① USB 3.0 完全等同於 USB 3.2 Gen1
② PoE 功能只有 PoE 針腳,不含 PoE 模組,需外接 PoE 模組才能支援 PoE 功能。若無特別說明,本表格中的 PoE 均指集成 802.3af 網路標準的 PoE 電路 (5V/2.5A)。
