樹莓派 Raspberry Pi USB to TTL 連接線

NT$ 658 (含稅)



售價含稅,隨貨附發票

保固1年

已售完

描述

Print Friendly, PDF & Email

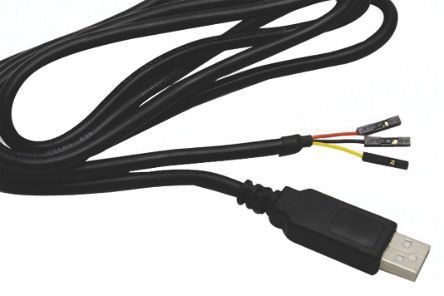

樹莓派 Raspberry Pi USB to TTL 連接線

Raspberry Pi USB to TTL Level Serial UART Converter Cable, FTDI Chip

The USB to TTL level serial UART converter cable for the Raspberry Pi can sit on the Rx/Tx of your Pi ARM processor UART or connect to your PC to get more information from the Linux kernel during Pi set-up.

Features & Benefits of the Converter Cable

•Entire USB protocol handled by the electronics in the cable USB
•Direct connection to an MCU UART or I/O pins
•UART interface support
•Fully assisted or X-On/X-Off software handshaking
•Data transfer rates from 300 baud to 3M baud at TTL levels
•Internal EEPROM with user writeable area
•5 V safe TTL inputs
•Low USB bandwidth consumption
•UHCI/OHCI/EHCI host controller compatible
•-40°C to +85°C operating temperature range
•1 m cable length
•FCC and CE compliant

商品評價

目前沒有評價。

搶先評價 “樹莓派 Raspberry Pi USB to TTL 連接線”
Print Friendly, PDF & Email
型號 USB TO TTL USB TO TTL (B)
晶片 FT232 CH343G
通信速率 300bps ~ 3Mbps 50bps ~ 6Mbps
硬件流 支援
系統相容 Win7/8/8.1/10/11、Mac、Linux、Android、WinCE Win7/8/8.1/10/11、Mac、Linux、Android
USB 介面 介面型式:USB-A 型介面
介面保護:自恢復保險絲、ESD 靜電保護
UART 介面 介面型式:接線端子
介面型式:8PIN 防呆介面
介面保護:IO 保護二級管電路
指示燈 PWR:電源指示燈,連接USB,檢測到電壓則亮紅燈
TXD:發送指示燈,有資料從 USB 介面發出時亮紅燈
RXD:接收指示燈,有資料從設備介面發回時亮紅燈
Print Friendly, PDF & Email
產品型號 Barcode Scanner Module (C) Barcode Scanner Module
解析度 640 × 480 648 × 488
掃描角度 俯仰 60°,傾斜 60°,旋轉 360° 俯仰 60°,傾斜 65°,旋轉 360°
掃描模式 感應掃描,連續掃描,按鍵掃描(預設)
精度 一維碼 3MIL
二維碼 5MIL
通訊介面 USB 鍵盤模式(預設),USB 虛擬序列,UART 序列
光源 白光照明,綠光瞄準
(均為可見光)
白光照明,紅光瞄準
(均為可見光)
電壓 5V / 3.3V 5V
電流 工作電流 250mA 135mA
待機電流 20mA 58mA
開機電流 258mA
温度 工作温度 -20 ~ +60°C
存儲温度 -40 ~ +70°C -30 ~ +70°C



Print Friendly, PDF & Email
碼制類型 碼制名 Barcode Scanner Module (C) Barcode Scanner Module
可讀 預設可讀 可讀 預設可讀
2D QR Code V V V V
Micro QR V
DataMatrix V V
PDF417 V V V
Micro PDF417 V
Aztec V
1D EAN-13 V V V
EAN-8 V V V
UPC-A V V V
UPC-E V V V
ISSN V
ISBN V
Codabar V V
Code 128 V V V
Code 93 V V
Code 39 V V V
Code 11 V V
ITF-14 V
ITF-6 V
Interleaved 2 of 5 V V
Industrial 2 of 5 V
Matrix 2 of 5 V V
CS Databar(RSS) V V
MSI-Plessey V V
