樹莓派避障感測器(Obstacle Avoidance Sensor)

NT$ 428 NT$ 398



英國Pridopia公司設計製造

工廠直營,提供技術支援,保固3個月

樹莓派 A+/B+/2B/3B/Pi Zero/Pi ZeroW適用

售價含稅,隨貨附發票

歡迎來信選購或洽詢

描述

Print Friendly, PDF & Email

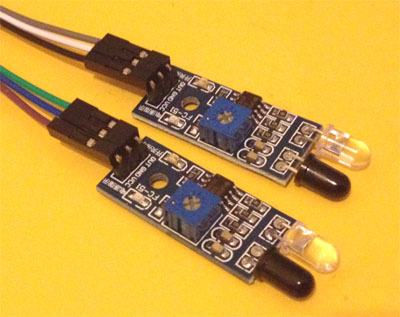

樹莓派避障感測器(Obstacle Avoidance Sensor)

Module Description

The light sensor module adaptable to the environment, having a pair of infrared transmitter and receiver, launch tube a certain frequency, infrared, when the obstacle detection direction (reflection surface), the infrared receiver is reflected back by the receiver tube, after processing through the comparator circuit, the green indicator light will illuminate while the signal output interface output digital signal (a low-level signal) can be adjusted via potentiometer knob detection distance, the effective distance range 2 ~ 30cm, working voltage is 3.3V-5V. The detection range of the sensor can be adjusted via potentiometer, with little interference, easy to assemble, easy to use, can be widely used in robot obstacle avoidance, obstacle avoidance trolley line counts, and black and white line tracking, and many other occasions.

商品規格

  1. When the module detects an obstacle in front of the signal, the circuit board green indicator light levels while continuing output low signal OUT port, the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential control to adjust, adjust potentiometer clockwise, the detection distance increases; counterclockwise adjustment potentiometer, detection distance decreases.
  2. the sensor active infrared reflection survey, so the target reflectivity and shape of the detection range of the key. The minimum detection distance which black and white max; small area of the object distance is small, a large area from the Grand.

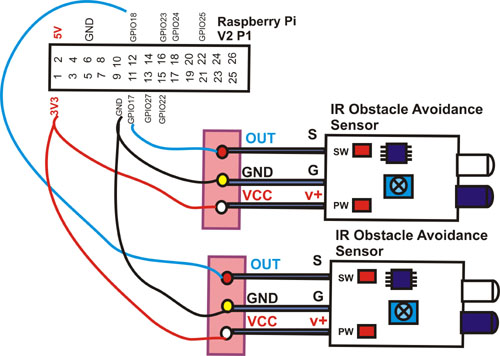

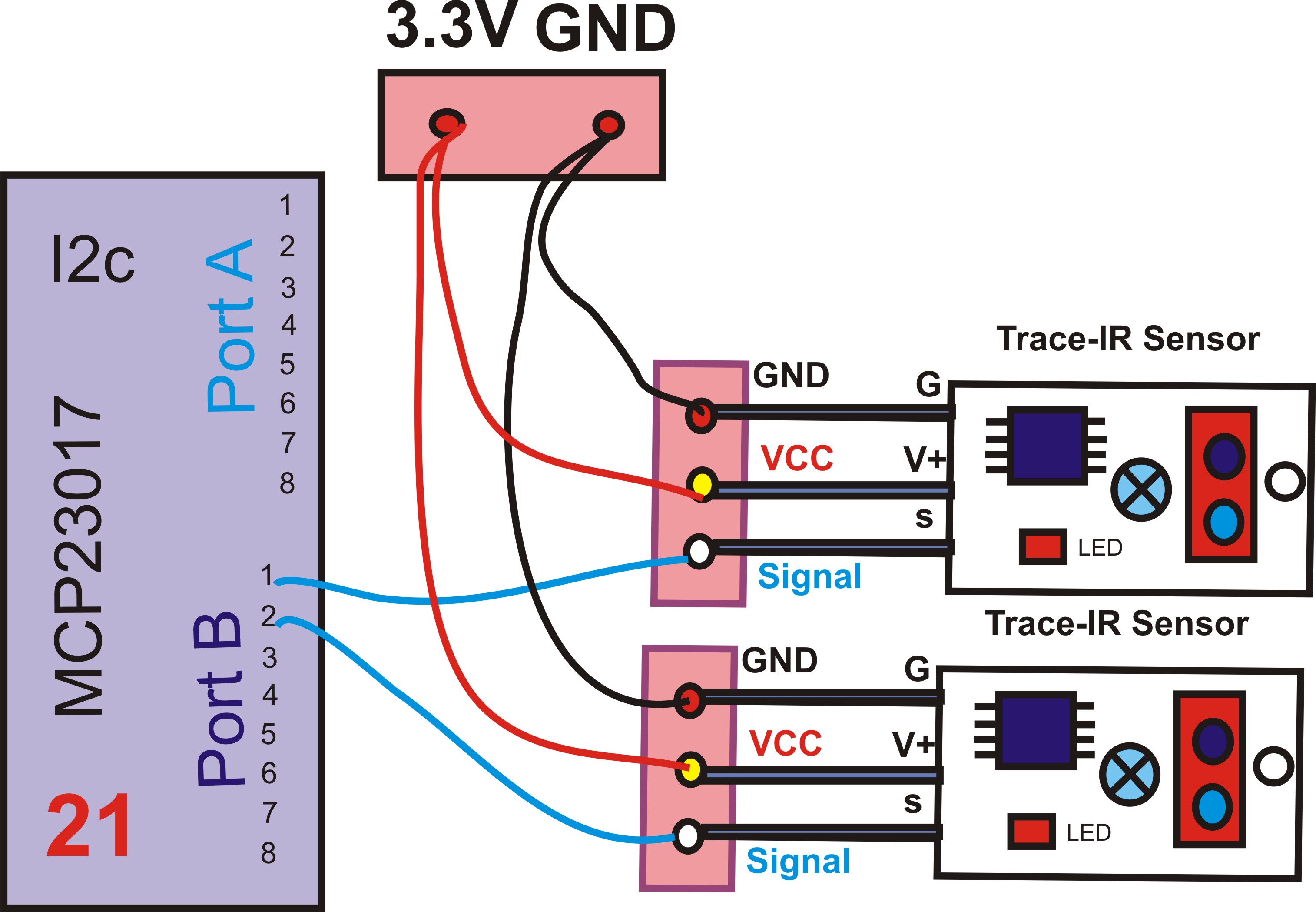

  3. the sensor module output port OUT can be directly connected to the microcontroller IO port, but also can directly drive a 5V relay; Connection: VCC-VCC; GND-GND; OUT-IO
  4. the comparator using LM393, job stability;
  5. can be 3-5V DC power supply for the module. When the power is turned on, the red power indicator light;
  6. with 3mm screw holes for easy mounting, installation;
  7. the circuit board size: 3.2CM * 1.4CM
  8. each module is shipped already comparing the threshold voltage adjustable via potentiometer good, non-exceptional circumstances, do not arbitrarily adjust the potentiometer.

相關文件

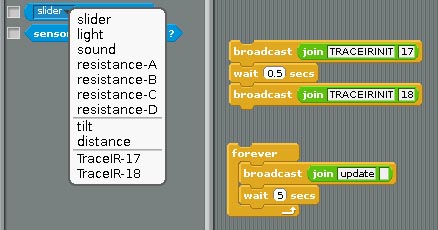

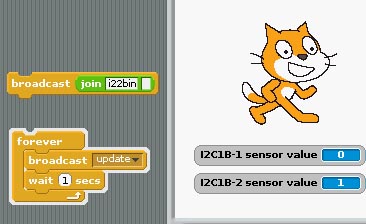

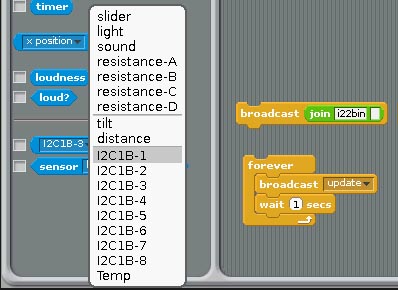

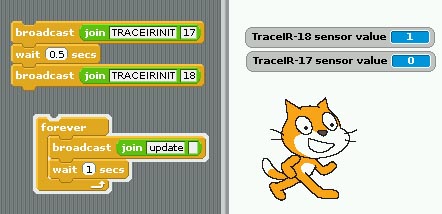

Pridopia Pi-Scratch driver software

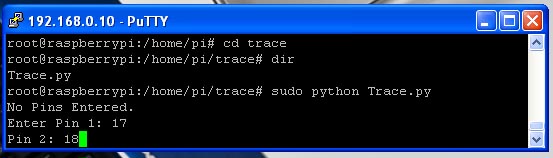

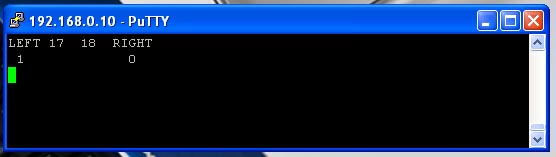

Demo Python program, Trace.7z

Minimum Requirements – a Raspberry Pi with Raspbian (wheezy) installed

商品內容

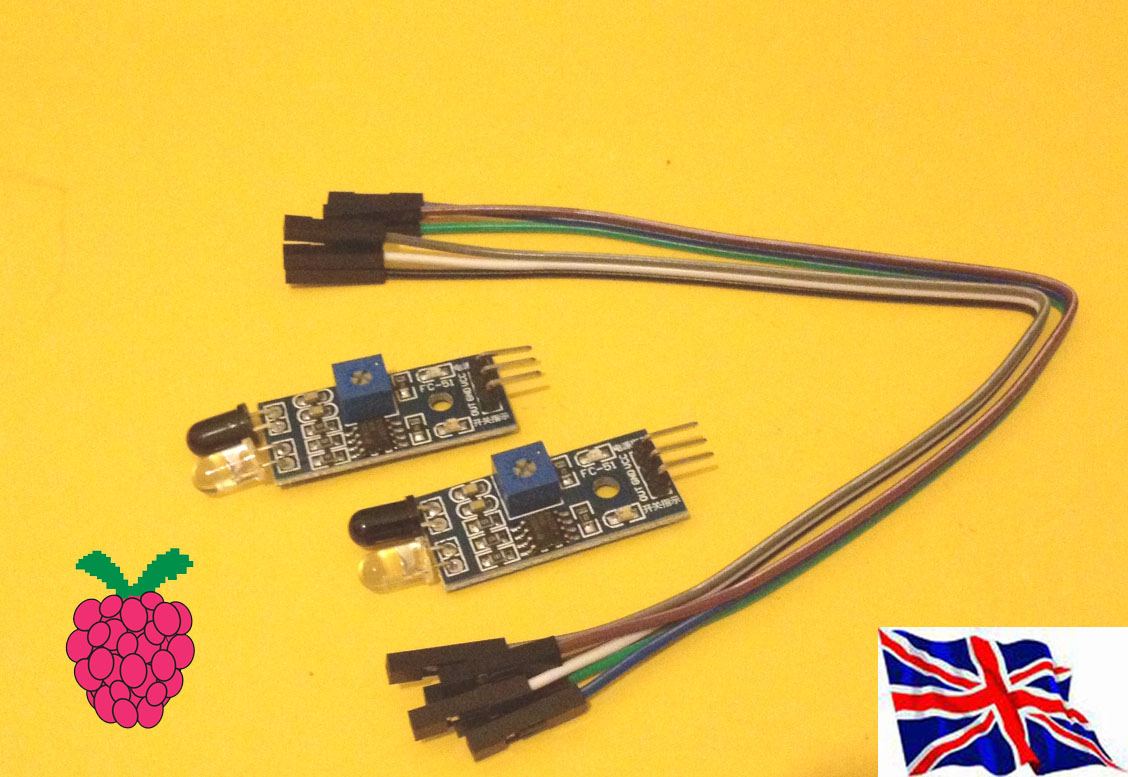

1x Rs-Pi Obstacle Avoidance Sensor sensor module

6x 20cm male to male cable

1x Manual
