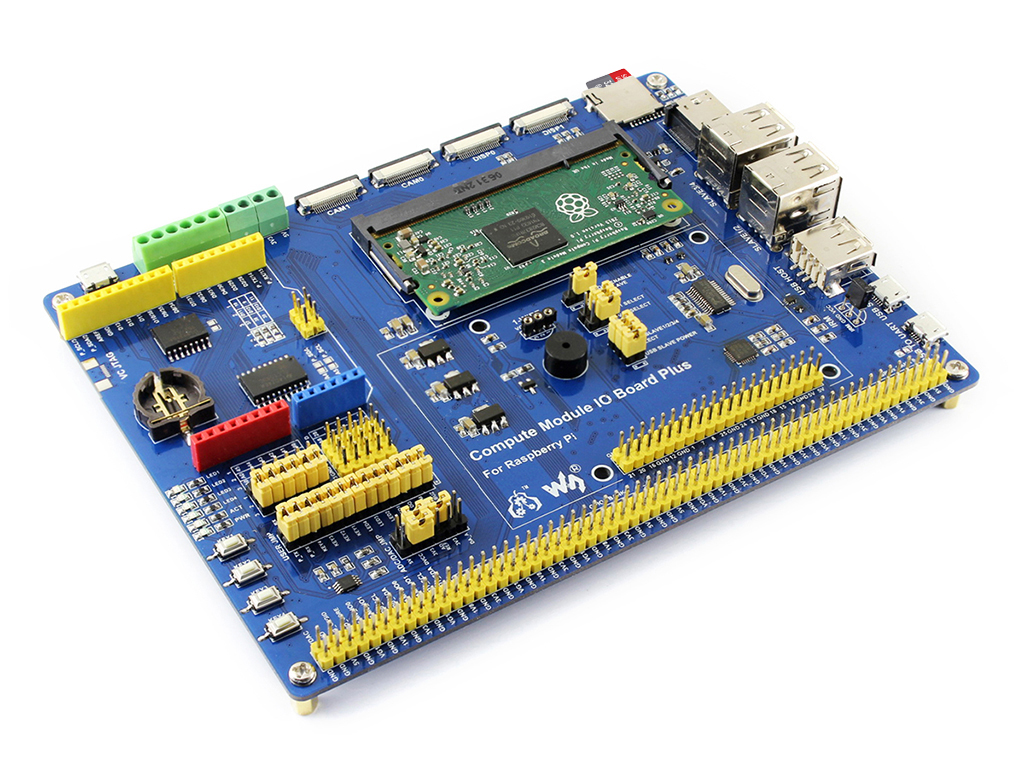

樹莓派運算模組3/3+主板(Compute Module I/O Board Plus)

NT$ 1,688 NT$ 1,438



售價含稅,隨貨附發票

保固1年

描述

Print Friendly, PDF & Email

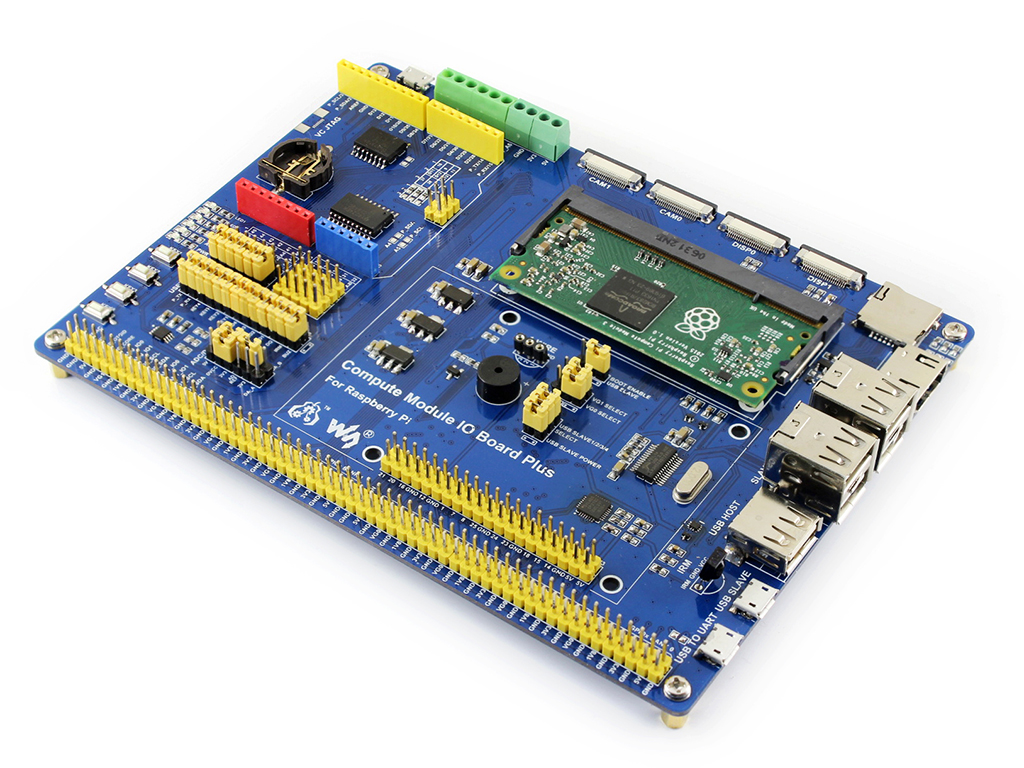

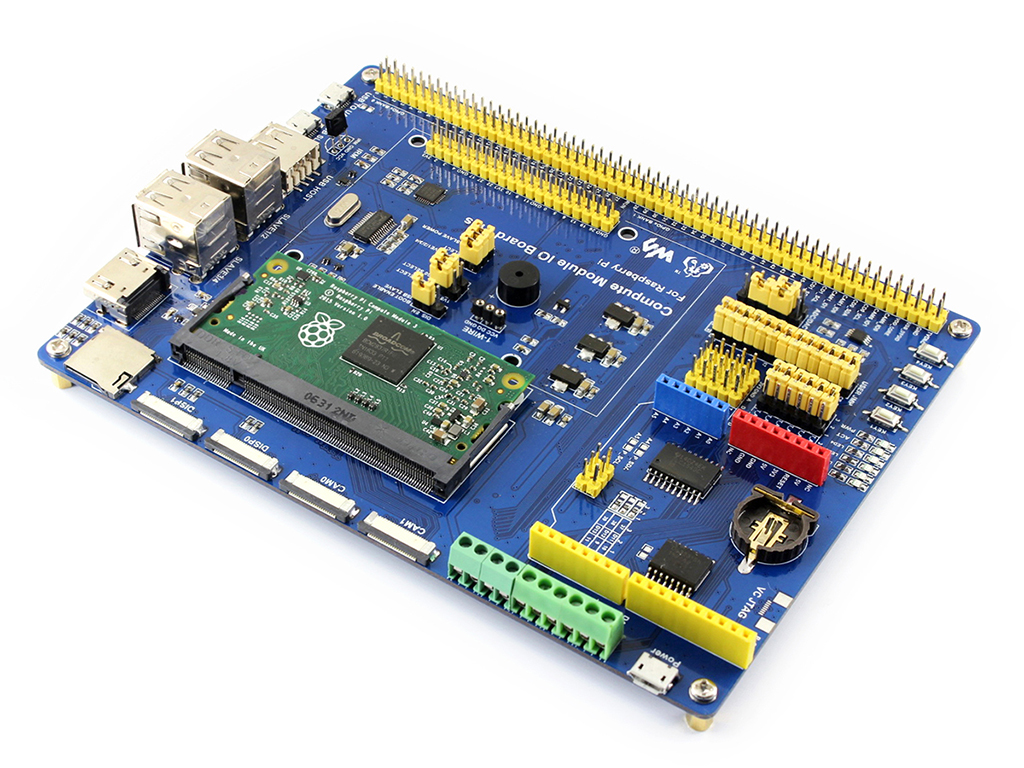

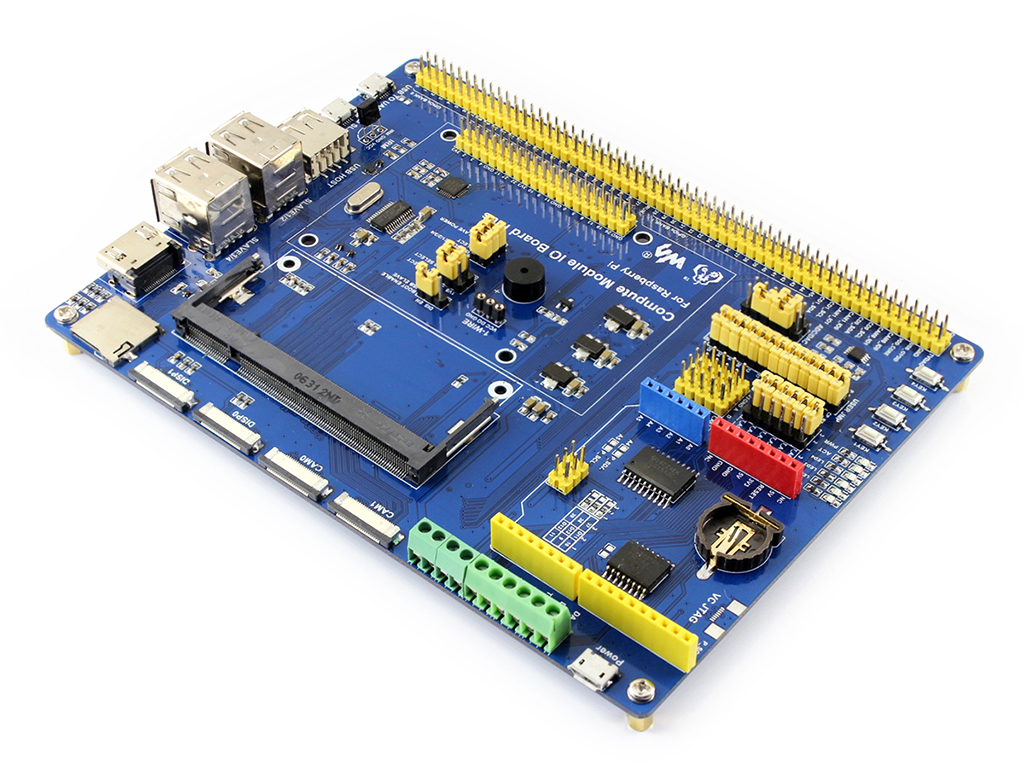

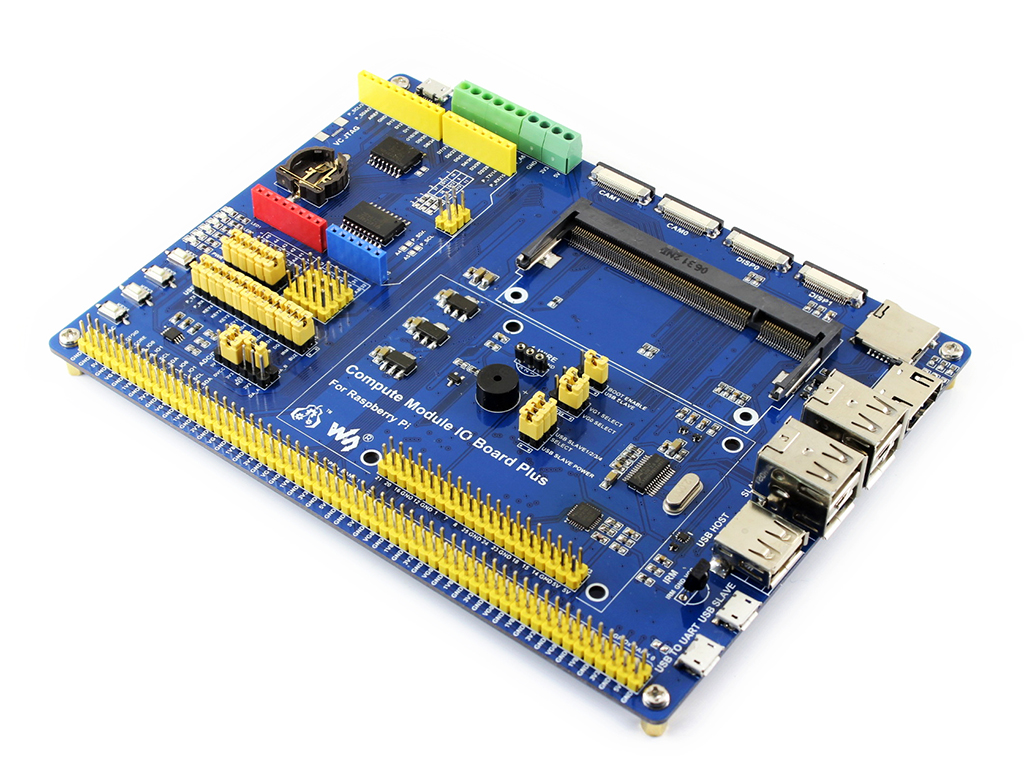

樹莓派運算模組3/3+主板(Compute Module I/O Board Plus)

商品特性:

  • 配置Raspberry Pi GPIO 排針,輕鬆連接各式樹莓派擴充模組
  • 配置Arduino連接埠,輕鬆連接各式Arduino擴充模組
  • 內建1-WIRE連接埠,輕鬆連接各式1-WIRE設備(如DS18B20)
  • 配置4個按鍵、4個LED和1個蜂鳴器,輕鬆進行 I/O 測試
  • 配置USB HUB,輕鬆連接USB設備
  • 配置紅外線接收器,輕鬆使用紅外線遙控
  • 配置USB TO UART,輕鬆進行串列埠測試
  • 配置感測器連接埠,輕鬆連接各式感測器
  • 配置ADC,10位,38KSPS,11通道(6通道用於Arduino連接埠,5通道用於連接感測器)
  • 配置DAC,2通道,16位精度
  • 配置RTC,時鐘模組

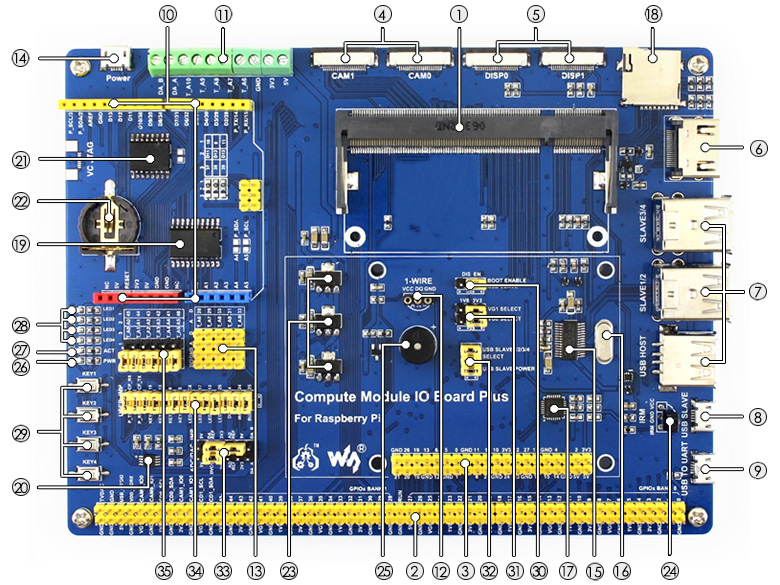

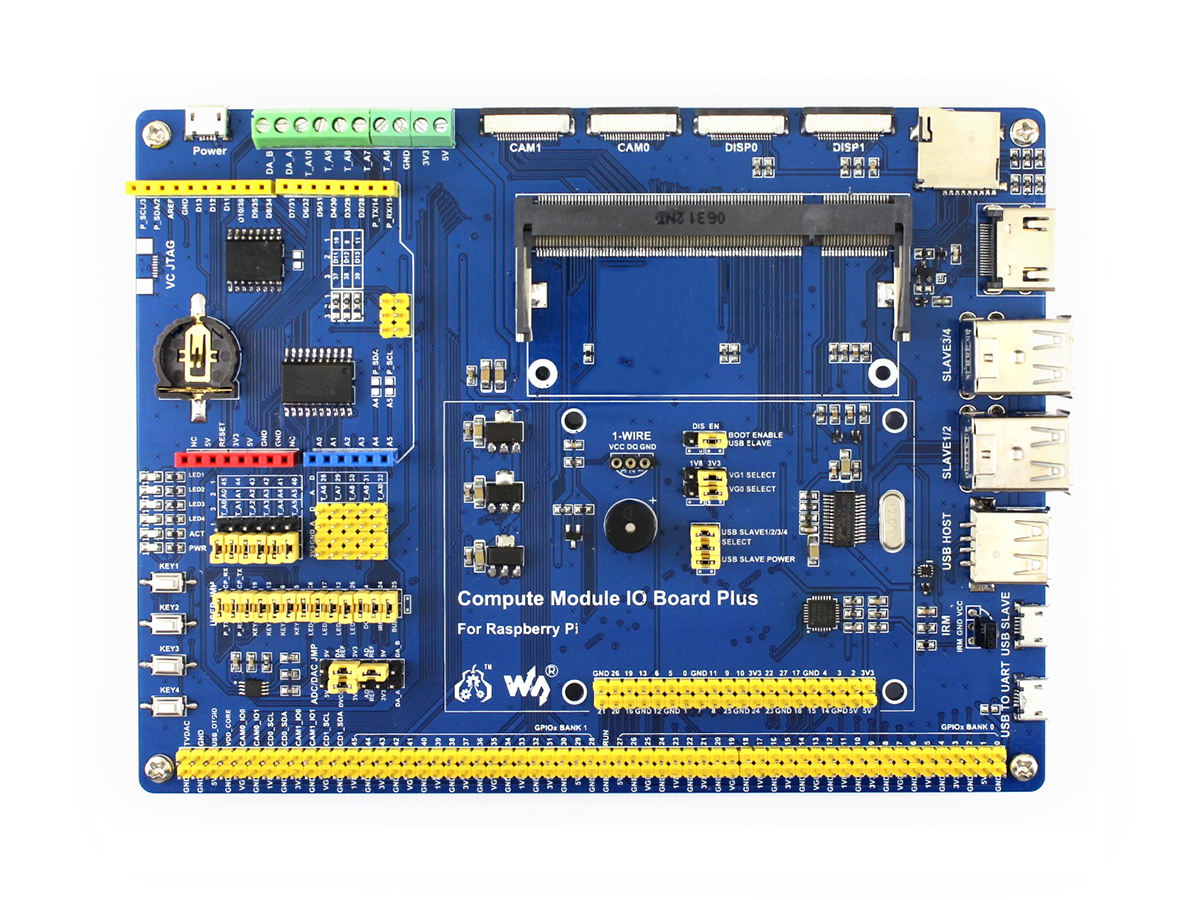

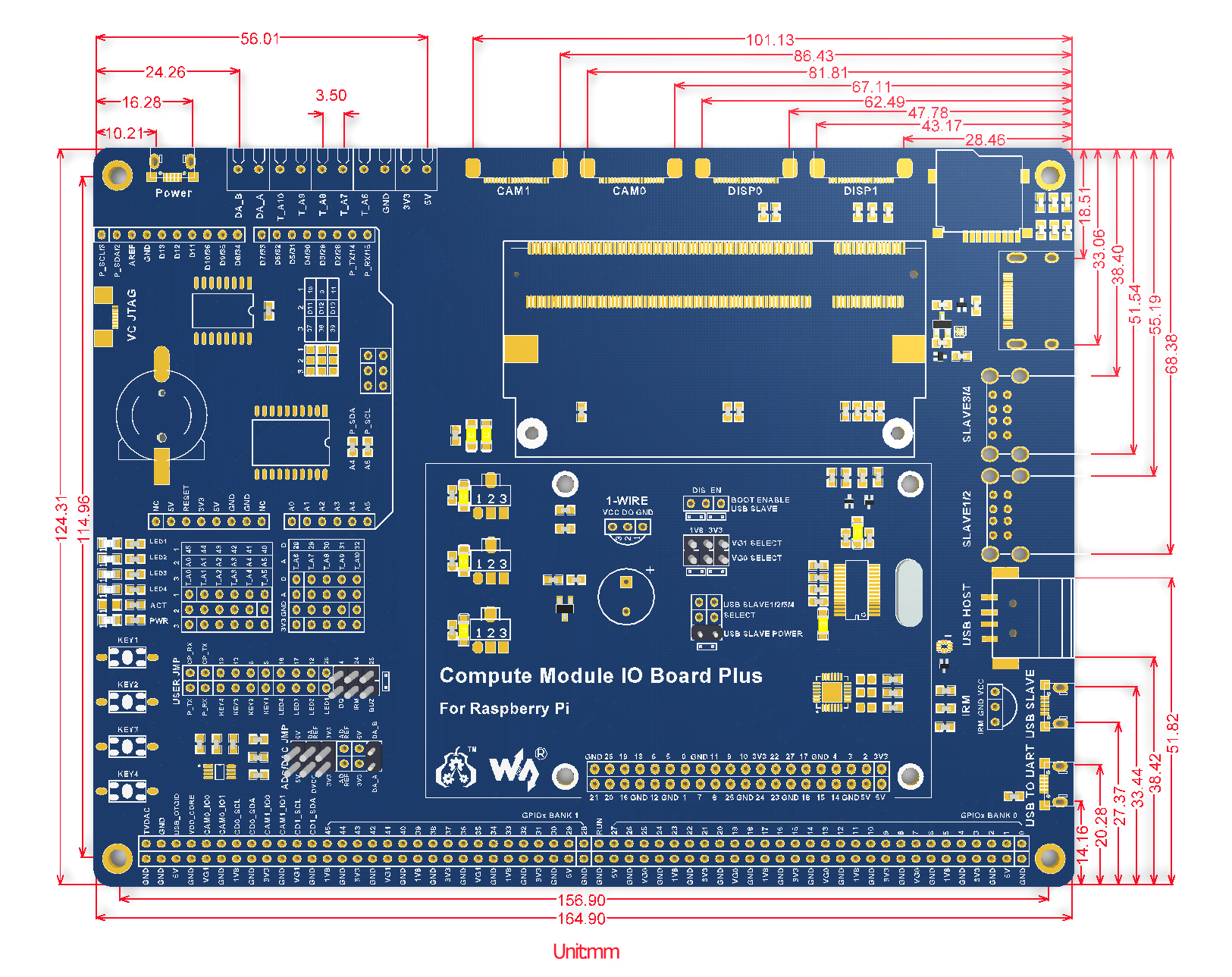

  • I/O連接埠簡介:
    1. Compute Module interface: for connecting Compute Module (CM3 / CM3L / CM3+ / CM3+L)
    2. Compute Module GPIO header: breakout all the Compute Module pins
    3. Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
    4. CSI interface: camera ports, for connecting Raspberry Pi Camera
    5. DSI interface: display ports, for connecting Raspberry Pi LCD
    6. HDMI port
    7. USB ports: for connecting USB devices
    8. USB SLAVE interface: allows you to burn system image in to Compute Module 3
    9. USB TO UART interface: for serial debugging
    10. Arduino header: for connecting Arduino shields
    11. AD/DA input/output screw terminals
    12. 1-WIRE interface: for connecting single-bus devices like DS18B20
    13. Sensor interface
    14. Power port: 5V 2.5A
    15. FE1.1S: USB HUB chip
    16. 12MHz crystal
    17. CP2102: USB TO UART converter
    18. Micro SD card slot: insert a Micro SD card with pre-burnt system, to start up Compute Module 3 Lite
    19. TLC1543: AD converter
    20. DAC8552: 16-bit DAC, 2-ch
    21. DS3231: high-precision RTC chip, I2C interface
    22. RTC battery holder: supports CR1220 batteries
    23. Voltage regulator: 3.3V / 2.5V / 1.8V
    24. LFN0038K: IR receiver
    25. Buzzer
    26. Power indicator
    27. ACT indicator: indicating the Micro SD card status
    28. User LEDs
    29. User Keys
    30. BOOT selection
      • EN: enable the PC to access SD card/eMMC through USB SLAVE
      • DIS: the Compute Module will boot from SD card/eMMC
    31. VGx power selection: config the I/O level
    32. USB HUB enable jumper: HUB enable and USB SLAVE power selection
    33. ADC/DAC configuration: config the power supply and reference voltage of ADC/DAC
    34. Peripheral configuration: config the control pins of UART, user keys, user LEDs, 1-WIRE interface, IR receiver, and buzzer
    35. Arduino AD selection
      • connect 1 and 2: Arduino A0-A5 as digital control pin
      • connect 2 and 3: Arduino A0-A5 as AD input
