描述

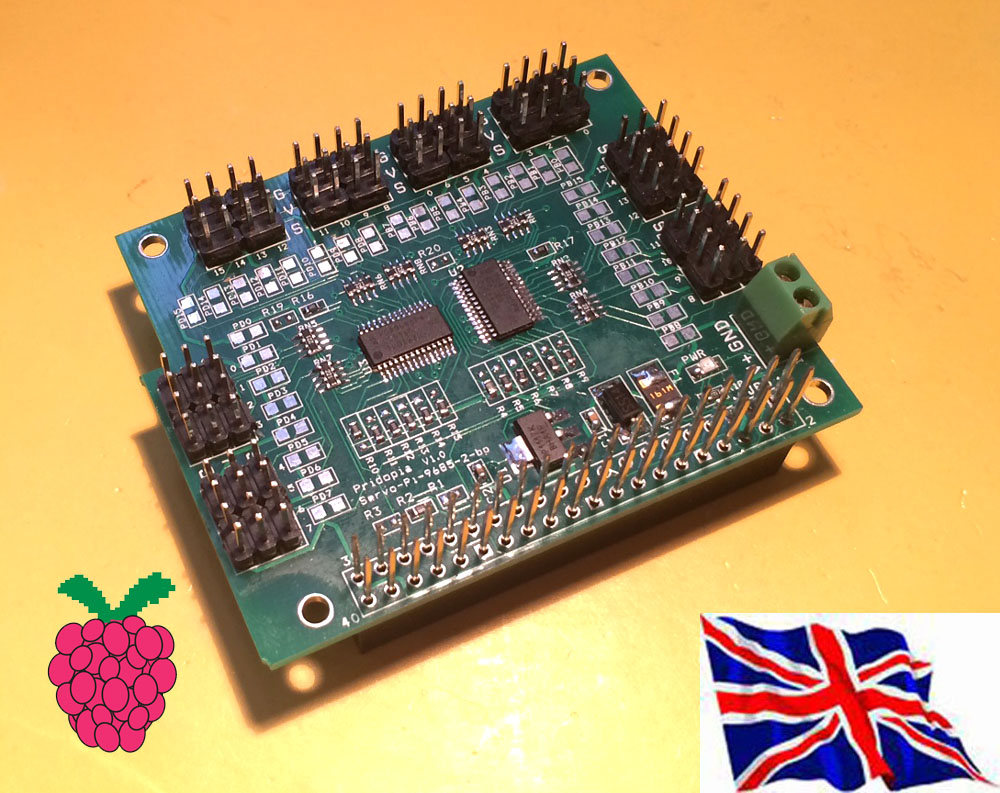

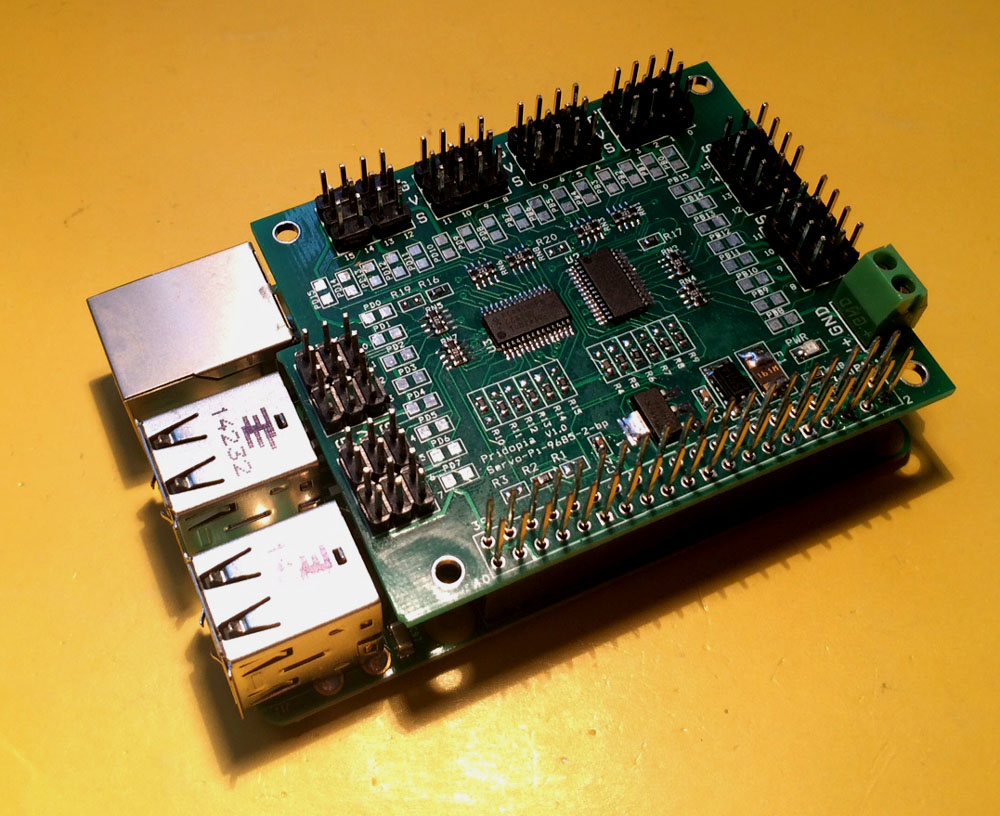

樹莓派I2C 32 channel PWM/Servo 擴充板
商品特色：
- 2P Terminal Block 5V input for PWM V+
- U2 PCA9685 (PWM Port 0 ~ 15)
- R4, R5, R6, R7, R8, R9( for U1 Address select A0, A1, A2, A3, A4, A5)
- U3 PCA9685 (PWM Port 0 ~ 15)
- R10, R11, R12, R13, R14, R15( for U3 Address select A0, A1, A2, A3, A4, A5)
- Red power-good V+ LED
- 1.6A PolySwitch Fuse for V+ input protect
- 支援Pi-Scratch
相關資料
servo-40.py
servo-41.py
pwm
servo-4041.py
pwm-v2 for Raspberry Pi V2 board
商品內容
1x Rs-Pi I2C 9685-2 32 channel PWM / Servo board
1x Manual
