特價

樹莓派1-Wire介面擴充模組(9 Channels)

NT$ 1,829 NT$ 1,688



英國Pridopia公司設計製造

工廠直營,提供技術支援,保固3個月

樹莓派 A+/B+/2B/3B/3B+/Pi Zero/Pi ZeroW適用

售價含稅,隨貨附發票

歡迎來信選購或洽詢

描述

Print Friendly, PDF & Email

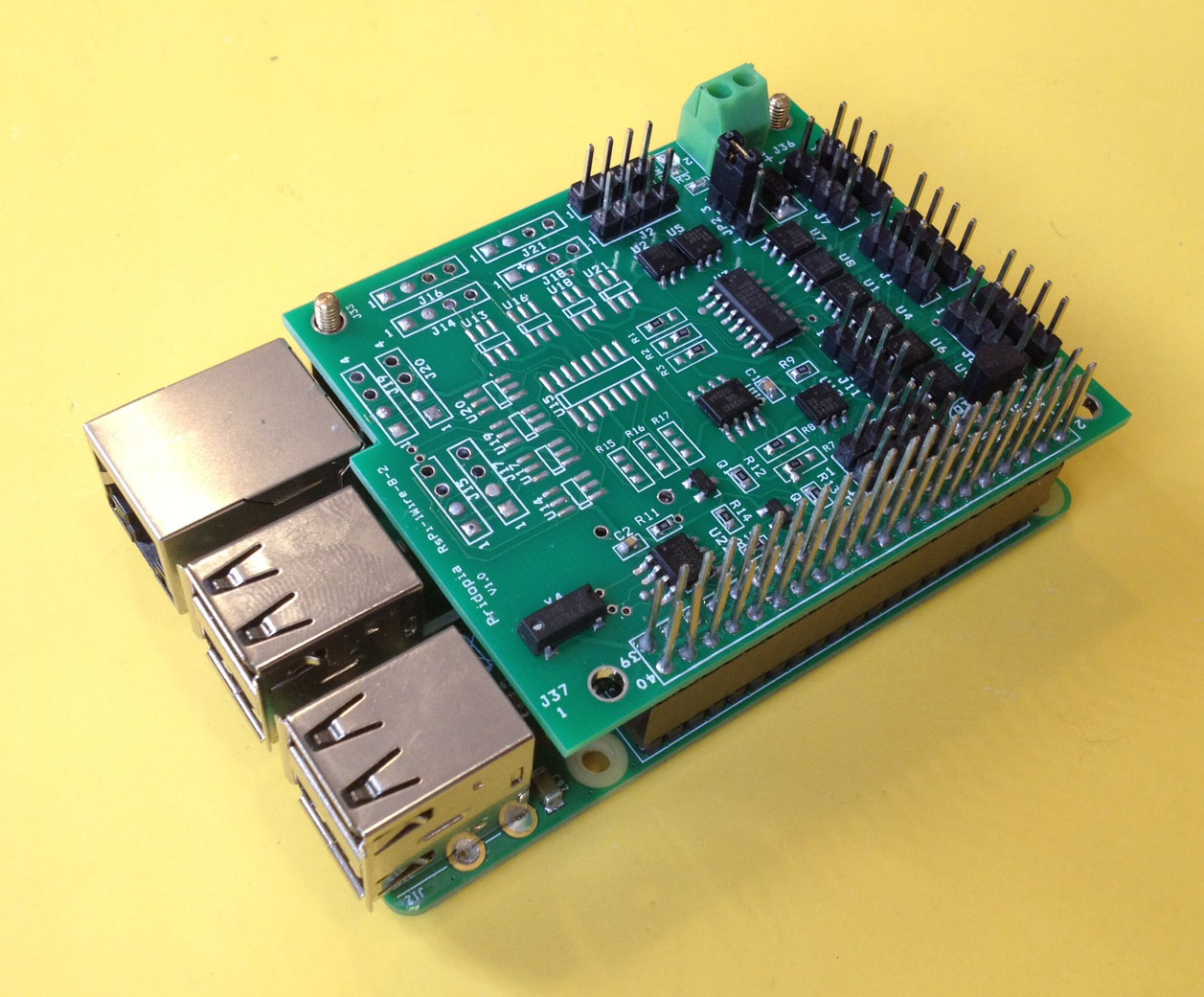

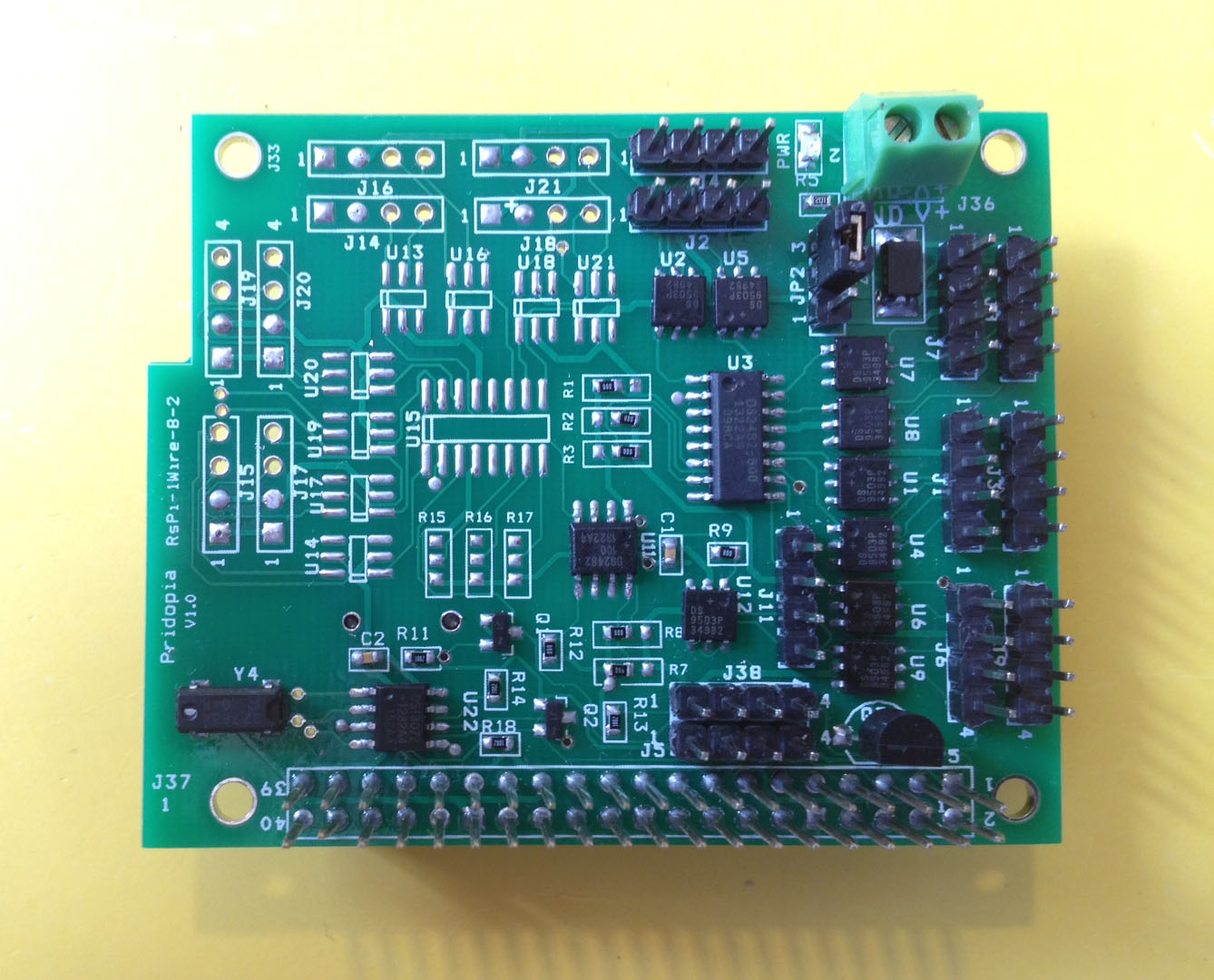

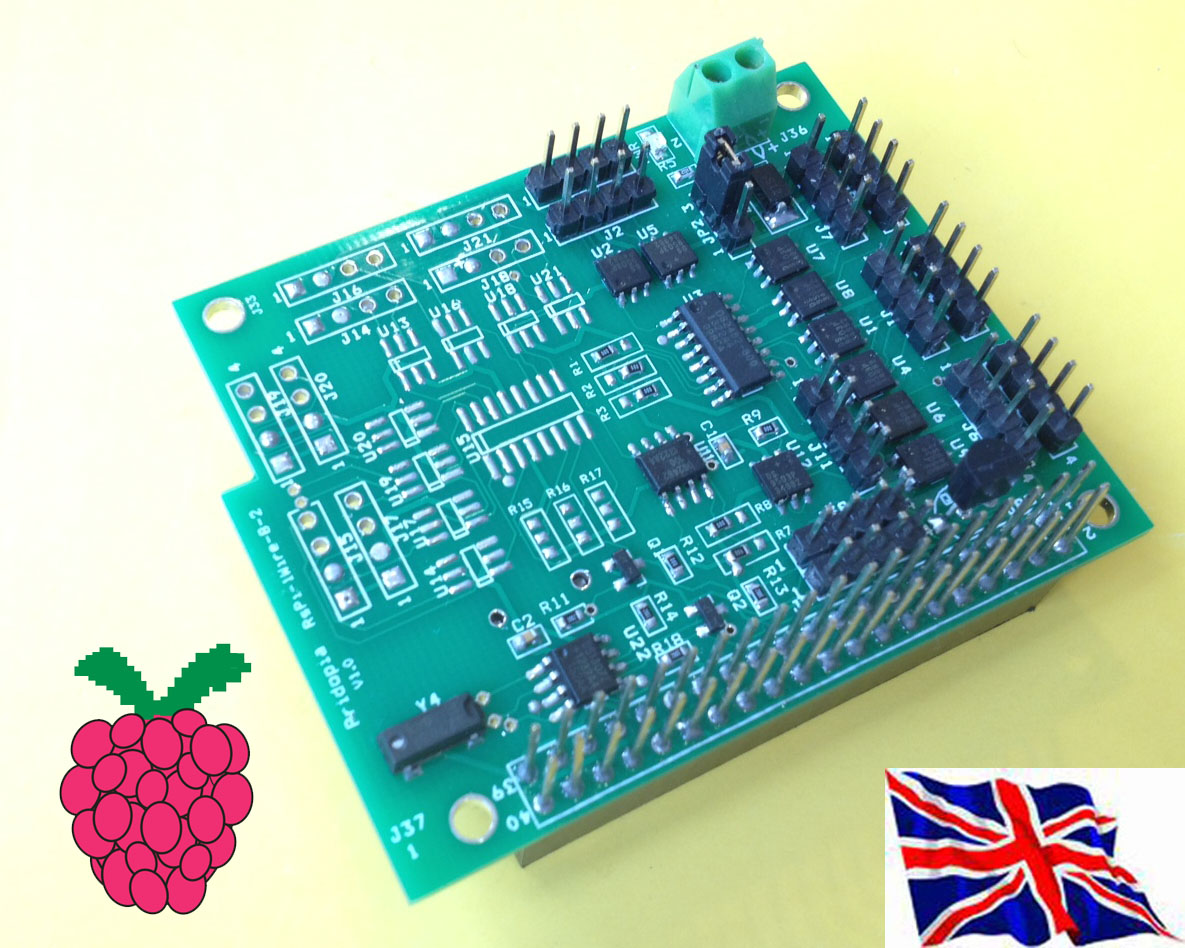

樹莓派1-Wire介面擴充模組(9 Channels)

商品特性:

    • The 1-Wire port is based around a DS2482-800 & DS2482-100 I2C to 1-Wire bridge device. The DS2482-800 provides bi-directional protocol conversion between the I2C port on the Raspberry Pi and any attached 1-Wire® slave devices. An ESD Protection Diode is used to protect the Board and Raspberry Pi from electrostatic spikes on the 1-Wire port. Connections to the 1-Wire port can be made through pin on the HAT.
    • 1-Wire DS2482-100 1 channel with 1 ESD protection diodes.
    • 1-Wire DS2482-800 8 channel with 8 ESD protection diodes.
    • with DS18B20 Temperature Sensor

相關資料:

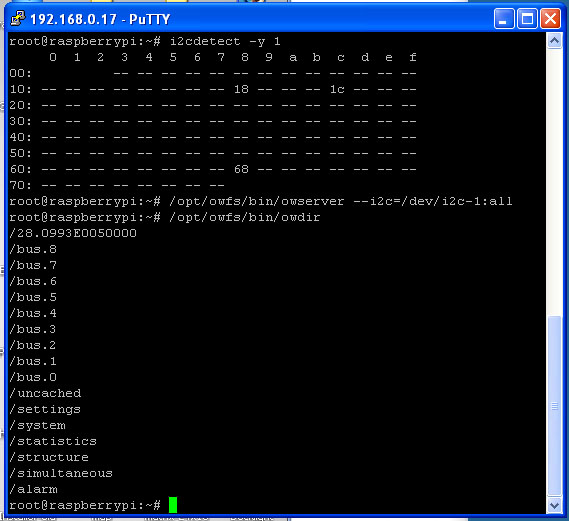

1-Wire Setting  information

商品內容:

1. Rs-Pi 9 Channel 1-Wire Board x1

2. Manual x1
